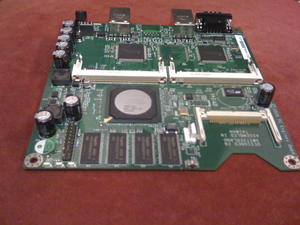

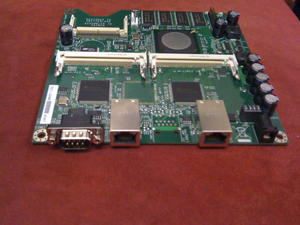

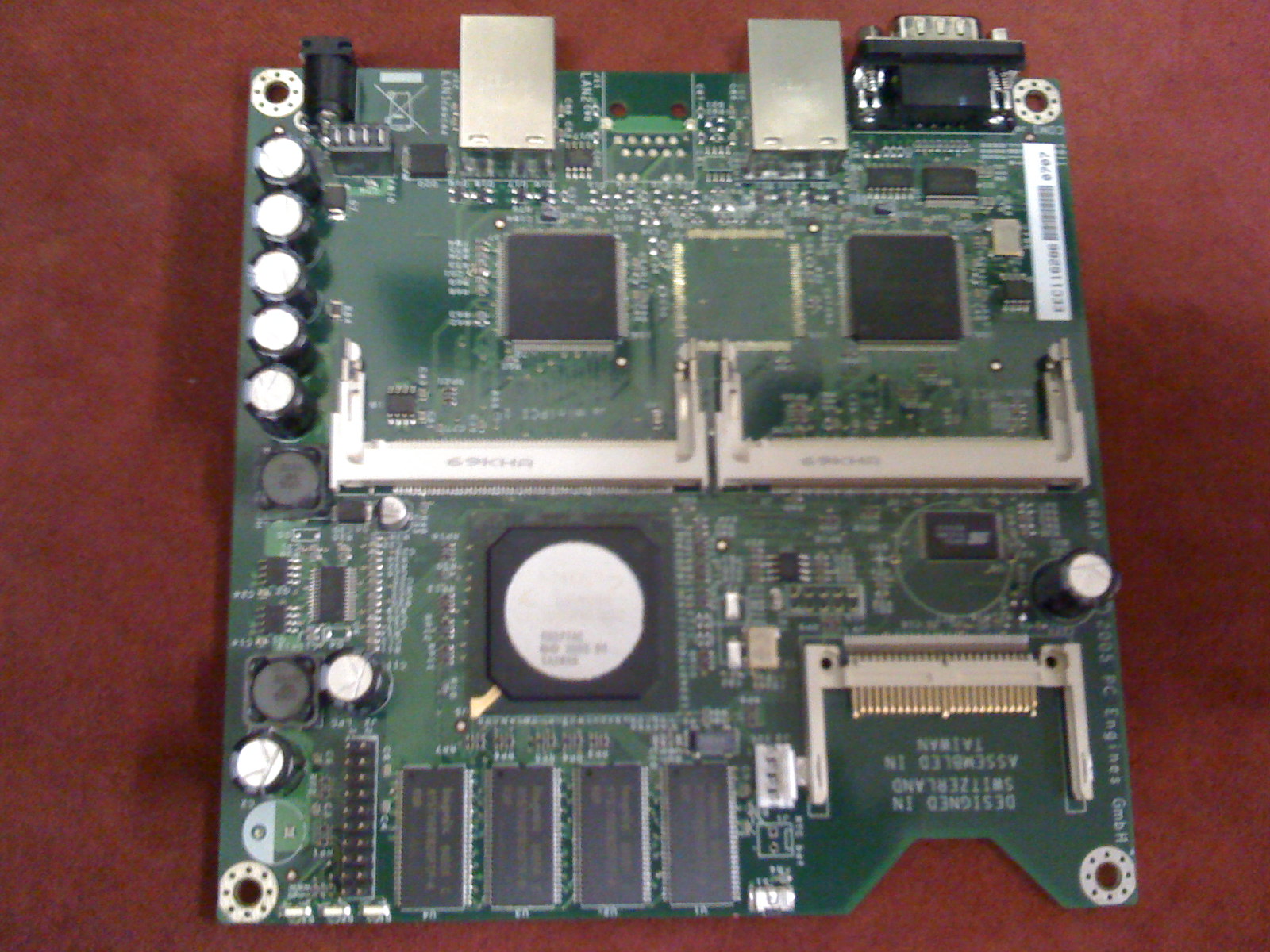

Linux embedded PC based on the WRAP 1e board from PC Engines.
Brief specs are as follows:
CPU: 233 MHz AMD Geode SC1100 CPU DRAM: 128 MB SDRAM Storage: CompactFlash socket containing 512KB CF Card Power: DC jack or passive POE, min. 7V to max. 20V Management: Watchdog timer built into CPU; LM77 thermal sensor Three front panel LEDs, one pushbutton switch Expansion: 2 miniPCI slots, LPC bus, I2C bus Connectivity: 2 Ethernet channels (National DP83816) Board size: 152.4 x 152.4 mm / 6" x 6"
This device is ideal as a development platform for Linux enthusiasts. It can be used as a basis for numerous appliances including router, or wireless basestation (with addition of miniPCI wireless card or cards).

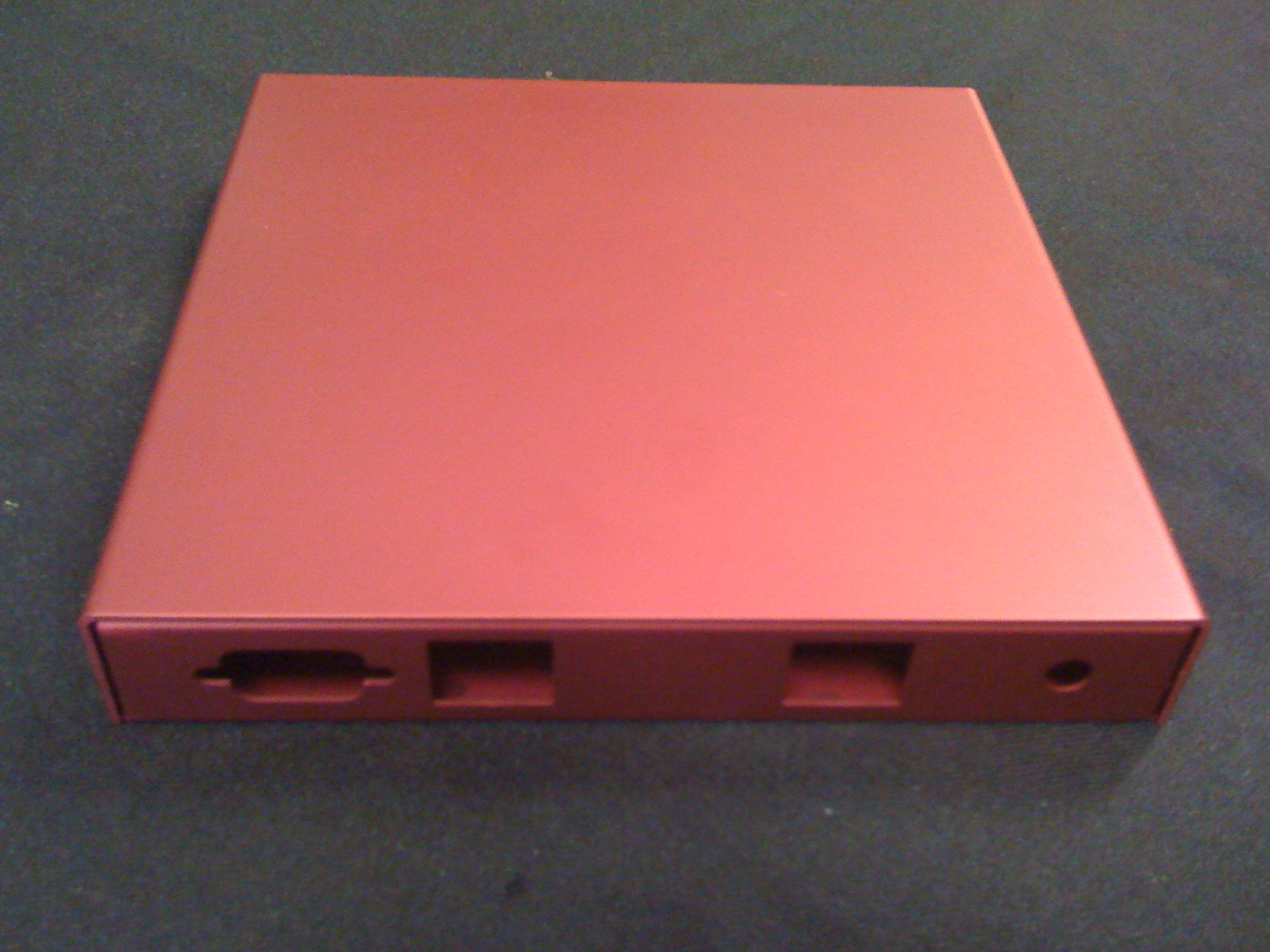

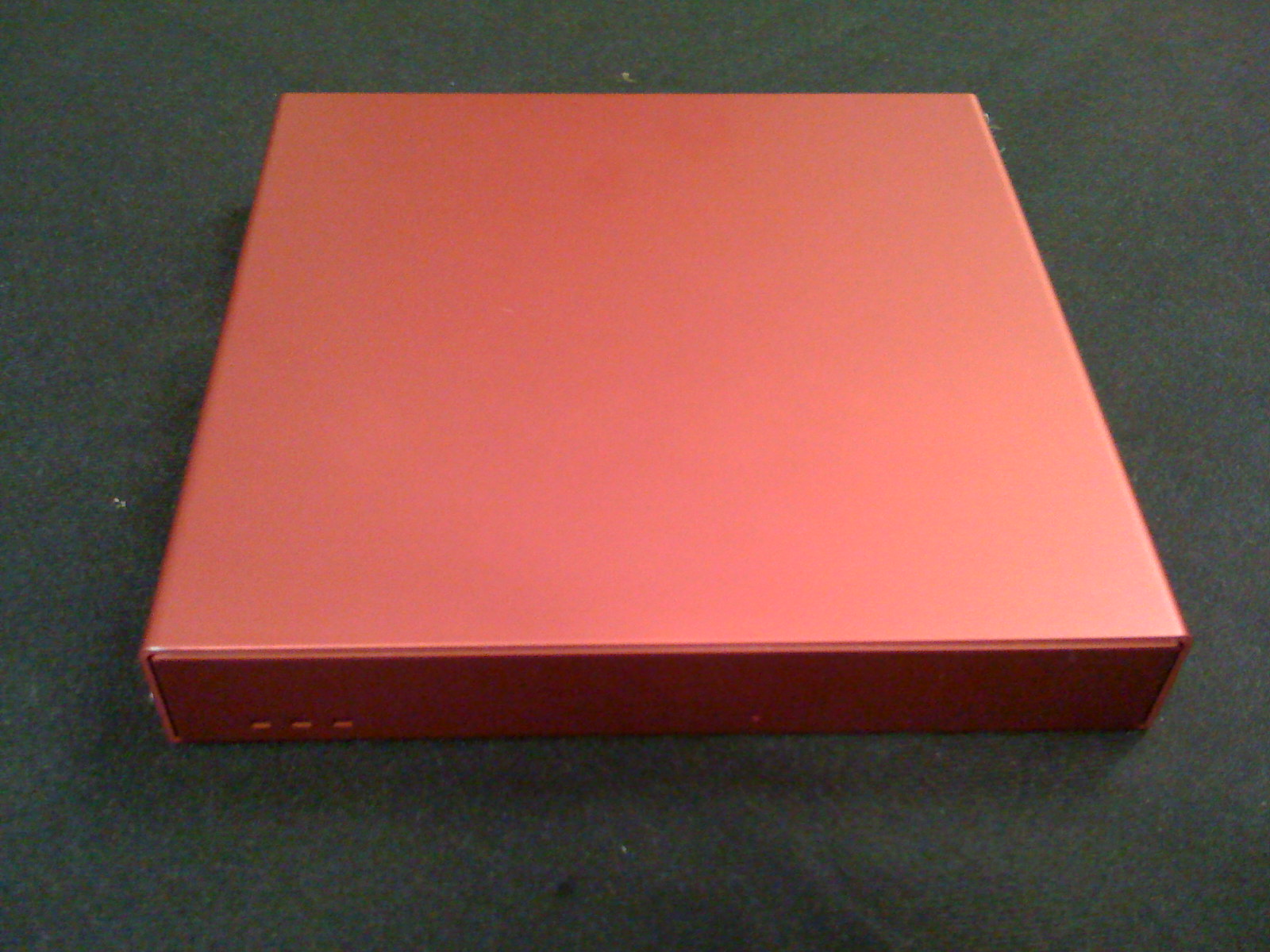

The possibilities are only limited by your imagination! It is brand new and tested, supplied with Red aluminium case as shown and comes with a 512KB CF Card preloaded with Voyage Linux 0.5.2 and UK Power Supply.
Unit is preconfigured to acquire an address using DHCP and then the standard voyage login of root/voyage will allow ssh access.
If you want to see the system console then you need to connect up to the serial port.
Cable connections that you will need are as follows:
Board DCE 9 pin F DCE 2 RX 3 TX 3 TX 2 RX 4 DTR 1 DCD and 6 DSR 5 GND 5 GND Board DCE 25 pin M DCE (no handshaking) 2 RX 3 TX 3 TX 2 RX 5 GND 7 GND Board DCE 25 pin M DCE (full handshaking) 1 DCD 8 DCD 2 RX 3 TX 3 TX 2 RX 4 DTR 20 DTR 5 GND 7 GND 6 DSR 6 DSR 7 RTS 4 RTS 8 CTS 5 CTS
